The miniKORG 700 was KORG’s first mass-produced monophonic synthesizer released in 1973 at a time when the form of synthesizers as musical instruments had not been fully established. After a lot of experimentation the miniKORG 700 arrived bringing the world of synthesizers to a wide group of users by offering simple operations that could producing extreme changes in sound, and was championed by a strong base of admiring musicians. The miniKORG 700FS is an authentic revival of the miniKORG 700S, (an improved version of the miniKORG 700) that was released the following year. The revised miniKORG 700FS offers added functionality such as an arpeggiator, spring reverb and aftertouch. The miniKORG 700FS is a fully-realized analog synthesizer that was developed in conjunction with the original designer, Fumio Mieda. (Note: To avoid confusion in the following text, both the original miniKORG 700 and the miniKORG 700S are listed as “miniKORG 700” for the most part.) While the miniKORG 700 was KORG’s first synthesizer, it also produced some of the fattest and most dense sounds of all of our synthesizers. The miniKORG 700FS, features oscillators with a penetrating sound and an authentic recreation of the Traveler controller, one of the key features of the miniKORG 700. The volca keys and volca bass use the filter circuit from the miniKORG 700, because the clear and penetrating characteristics of this filter were a perfect match for products that specialize in lead and bass synth sounds with a strong presence. The miniKORG 700 sound sits easily in today’s music, particularly with its lead and bass synth sounds.
Keyboard 37 keys (with aftertouch, no velocity sensitivity)
Range 7 octaves
Waveform Triangle wave, Square wave, Sawtooth wave, Chorus I, Chorus II
Input USB connector (Type B), MIDI IN connector, SYNC IN and SYNC OUT jack (3.5mm monaural mini phone jack), CV IN and GATE IN jack (3.5mm monaural mini phone jack), AUDIO IN jack (6.3mm monaural phone jack, TS unbalanced)
Output OUTPUT L/MONO and R jack (6.3mm stereo phone jack, TS unbalanced), Headphones jack (6.3mm stereo phone jack)
Power supply AC adapter (DC 12V)
Power consumption 9 W
Dimensions (W x D x H) 744 x 280 x 122 mm/29.29” x 11.02” x 4.80”
Weight 8.5 kg/18.74 lbs.

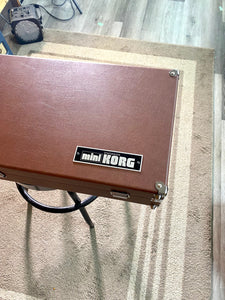

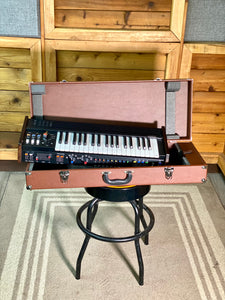

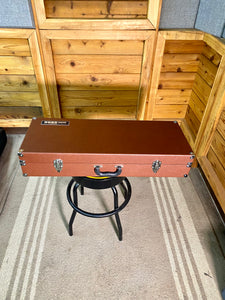

Included items AC adapter, Traveler knob (without protrusions type) x 2, Hard case
