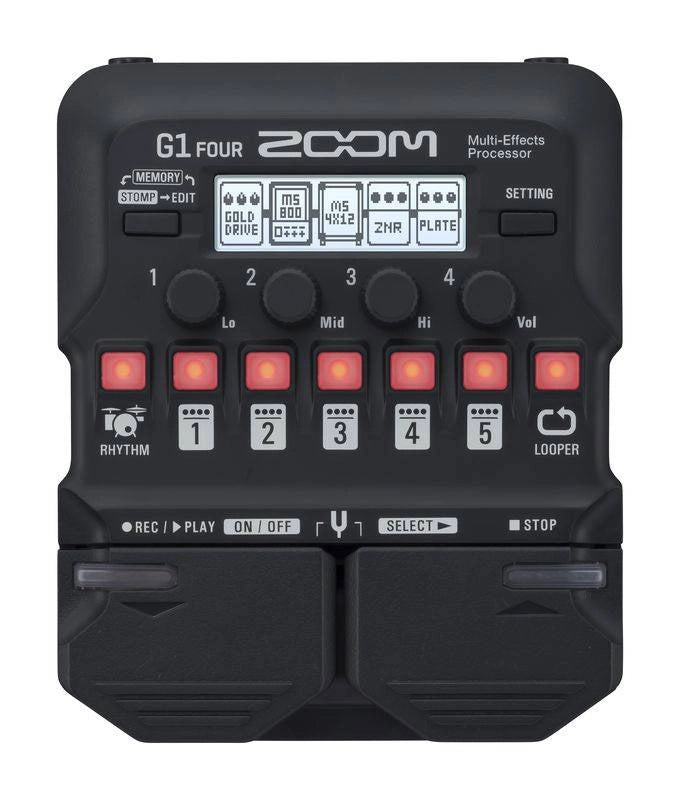

Zoom G1 FOUR Guitar Multi-Effects Processor

The Zoom G1 FOUR and G1X FOUR feature over 70 effects and amp models, looper and drum machine. Plus, access ZOOM Guitar Lab's additional library of downloadable effects. Plug in and be amazed!

X for XPRESSION
The G1X FOUR comes with ZOOM's expression pedal, which provides control over effects such as volume, wah, delay and pitch.

Sounds that Inspire
Both pedals have more than 60 traditional and boutique effects, including ring modulator, pitch-shifting delay and even sitar simulation.

Free Guitar Lab Software
With ZOOM Guitar Lab, explore an endless world of patches, effects and more. And with its ability to manage and backup all of your patches, you can experiment and create endless combinations.

Perform Live
Seamlessly switch up your sounds during live shows using either of 2 performance modes.
• PRESELECT mode lets you jump from patch to patch without affecting the patch your currently playing.
• STOMP mode lets you turn individual effects on and off with the tap of your foot.

Power Options
The G1 FOUR/G1X FOUR runs on just four AA batteries. Alternatively, it can be powered using the optional Zoom AD-16 AC adapter or via USB bus power.

Features
• G1 FOUR offers over 60 built-in effects
• G1X FOUR offers over 70 built-in effects
• 13 amp models for simulating classic rigs
• Up to 5 effects can be used simultaneously, chained together in any order
• Looper for recording up to 30 seconds / 64 beats of CD-quality audio with seamless start and end times
• ZOOM Guitar Lab software for creating, editing and managing effects and patches
• 68 built-in rhythm patterns which can be used in conjunction with the Looper
• 50 memory locations for storing user-created patches
• Auto Save function for automatic saving of all patch parameters
• Onboard chromatic tuner supports all standard guitar tunings, including open and drop tunings
• Input jack accepts standard mono guitar cable (both active and passive instruments supported)
• Auxiliary input jack for connection of personal music players
• Output jack for connection to amp or headphones
• Runs on 4 AA batteries, with alkaline battery life of 18 hours
• USB port for firmware updates, power and connection to ZOOM Guitar Lab

Included Accessories
• Quick Guide
• AA Batteries (x4)
• Patch List

Specifications
MAXIMUM NUMBER OF SIMULTANEOUS EFFECTS: 5
USER PATCHES: 50
SAMPLING FREQUENCY: 44.1 kHz
A/D CONVERSION: 24-bit, 128 oversampling
D/A CONVERSION: 24-bit, 128 oversampling
SIGNAL PROCESSING: 32−bit
DISPLAY: 128x32 dot matrix LCD
INPUT: Standard mono phone jack / Rated input level: -20 dBu / Input impedance (line): 470 kΩ
AUX IN: Stereo mini jack / Rated input level: -10 dBu / Input impedance (line): 1kΩ
OUTPUT: Standard stereo phone jack (combined line/headphone) / Maximum output level: Line +2 dBu (10 kΩ or more output impedance) / Headphones 17 mW + 17 mW (32Ω load)
Additional Specifications
INPUT S/N: 120 dB
NOISE FLOOR (RESIDUAL NOISE): -97 dBu
POWER: Power AC adapter: 9V DC 500mA center negative (ZOOM AD-16) / 4 AA batteries (about 18 hours continuous operation time when using alkaline batteries with the LCD backlight off)
USB: Connector: USB2.0 Micro-B
Guitar Lab / Standard: USB 1.1 Full Speed
Supported cable: USB2.0 Micro-B cable / Use cables for data transfer. / Power can also be supplied through the USB port. / When using a cable designed only for power, other USB functions cannot be used.
EXTERNAL DIMENSIONS: G1 FOUR / Height: 156 mm (D) 130 mm (W) 42 mm (H) / Weight: 340 g (excluding batteries)
