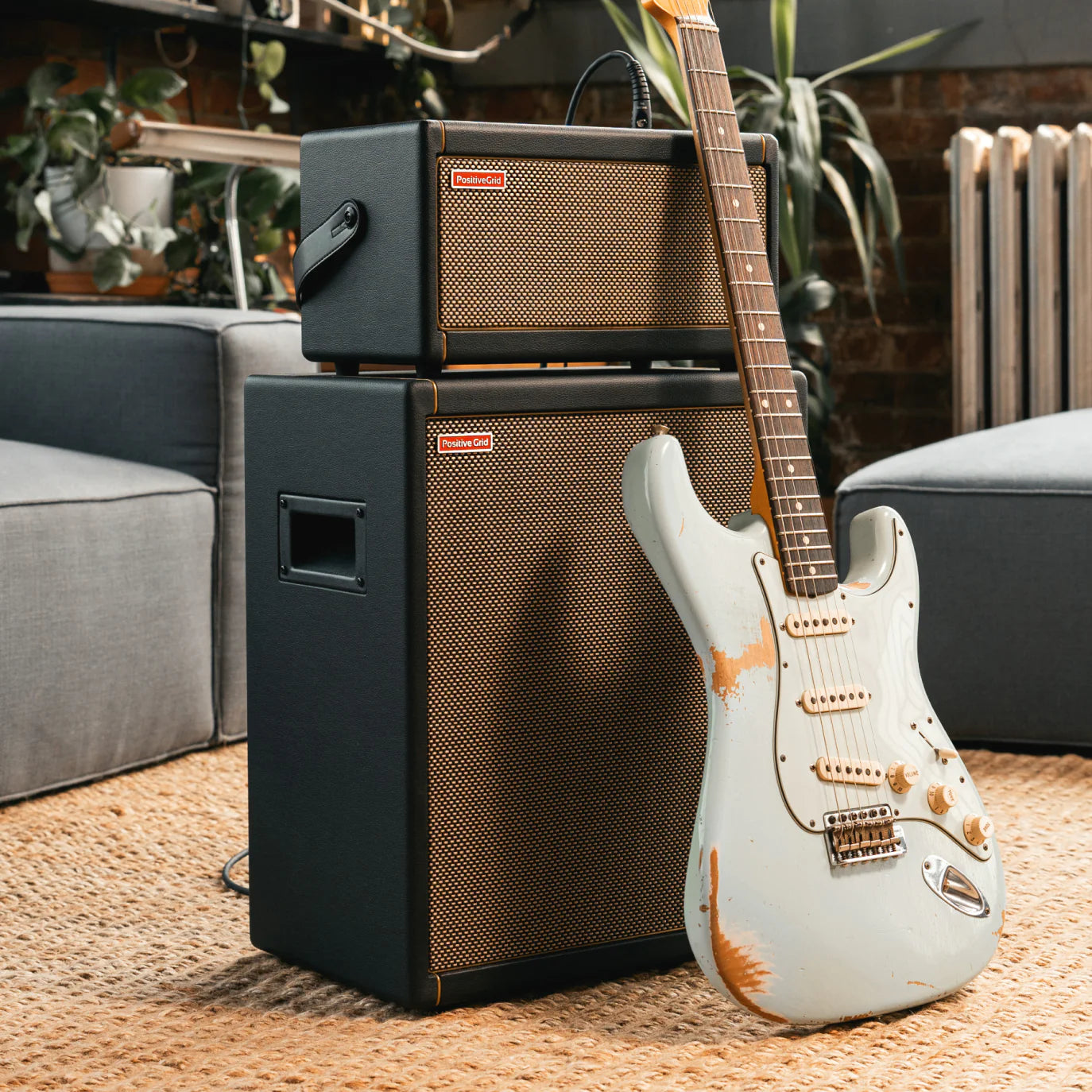

Positive Grid Spark Cab 140-Watt Class D Powered FRFR Speaker Cabinet IN STORE ONLY!!
Positive Grid Spark Cab 140-Watt Class D Powered FRFR Speaker Cabinet IN STORE ONLY!!
Couldn't load pickup availability
Superb sounding! this one really surprised us here at Maar`s!
140-Watt powered guitar amp speaker cabinet optimized to work seamlessly with Spark, Spark MINI and Spark GO amps,¹ as well as other modelers, instruments or amps.² Versatile, high-quality sound for live performances, recording sessions and home practice.
AUDIO SPECIFICATIONS
FREQUENCY RANGE
45-20,000 Hz
STEREO/MONO
MONO
MAXIMUM SOUND PRESSURE LEVEL
117 dB (RMS), 120 dB (Peak)
CABINET PRINCIPLE
Bass Reflex
POWER AMPLIFIERS
140W (RMS), 400W (Peak) Class D
SPEAKERS
1x10-inch woofer, 2x1-inch (25mm) tweeter
TOTAL IMPEDANCE
4 ohms
CONTROLS AND CONNECTIVITY
BACK PANEL CONTROLS
Input Selector - Switch between the 3.5 mm Spark Input and the two mono XLR/TRS Combo Inputs
Speaker Volume
Line Out Volume
Ground Lift Switch
Contour Switch - Boosts low and high frequencies to improve balance at low volumes
WIRED CONNECTIVITY
1 x 1/8" dedicated stereo Input for Spark Amp
2 x mono XLR/TRS combo inputs
1 x mono XLR balanced output
PHYSICAL UNIT
DIMENSIONS
492.5 x 399.8 x 255 mm (with rubber feet) (19.39 x 15.74 x 10.04 in)
WEIGHT
13.5 kg
29.76 lbs
GRILLE CLOTH
Woven
Handle
2 recessed speaker handles on the sides
Cable Tie
1 adjustable cable tie for fixing instrument and audio cables on the back
INCLUDED IN THE BOX
BOX CONTENTS
3.5mm stereo audio cable for Spark amps
DC power cable for Spark
Power cord
Quick Start Guide
Safety Instructions Card
POWER
MAIN INPUT POWER
AC 100-240V
DC POWER OUTPUT For Spark
DC 19V/2.5A
USB-C POWER OUTPUT For Spark MINI & GO
DC 5V/2A
