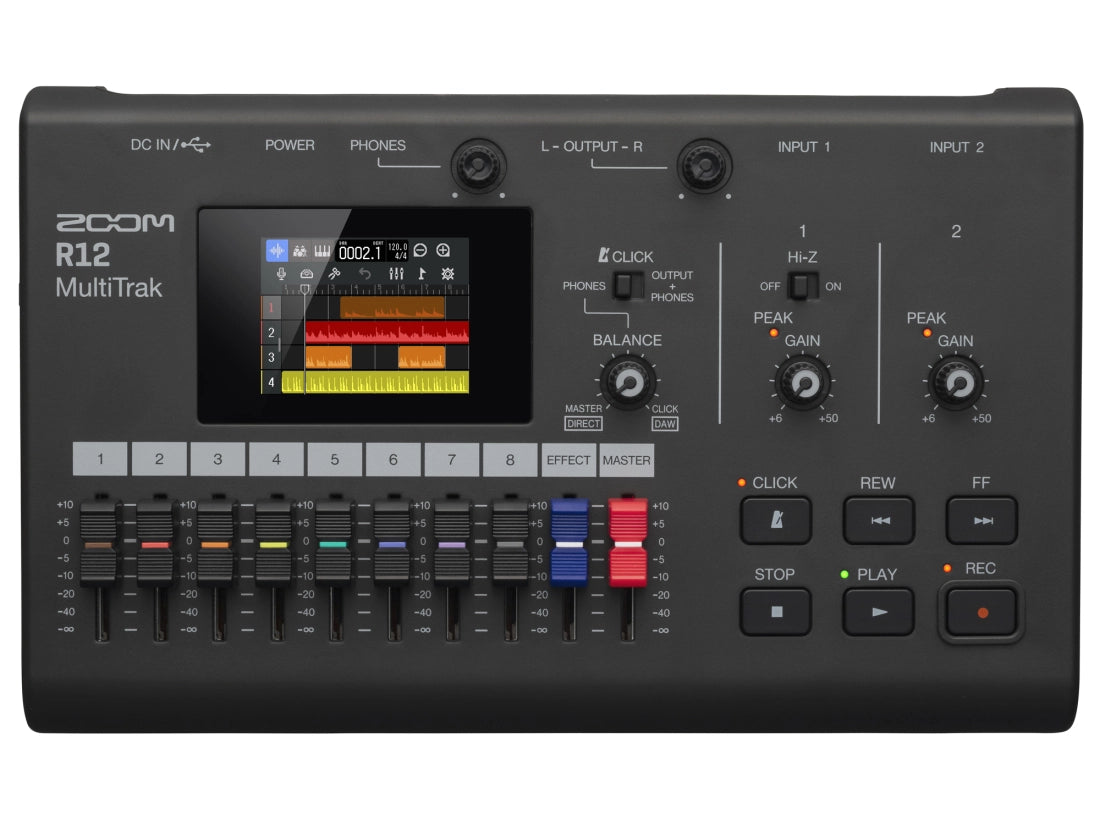

Zoom R12 MultiTrak 8-Track Recorder/Interface with Touchscreen
Zoom R12 MultiTrak 8-Track Recorder/Interface with Touchscreen

Zoom R12 MultiTrak 8-Track Recorder/Interface with Touchscreen

Regular price $399.99 CAD
Unit price  per
Shipping calculated at checkout.

Musical freedom. Battery powered.


Live to make music
The R12 is made for musicians who live to make music. And they want the freedom to make music wherever they go.

All you need on-board
Compact and mobile, you can record, edit, and mix songs without a computer. Use the R12's full-colour LCD touchscreen to easily cut, copy, loop, and edit your tracks.

Amazing sound
The R12 has super-clean preamps, and you'll love the way they sound. With two XLR/TRS inputs, and 8 tracks of audio, the R12 is perfect for recording everything from demos to release-ready songs.

Fully loaded
The R12 includes a send effects channel offering reverb, chorus and delay with a dedicated effects return fader. For advanced tones, you can use presets and effects from Zooms Guitar Lab. The R12 also has pan and a 3-channel EQ for each track and a compressor on inputs 1 and 2.

Playback. Play along.
Use Sequence Play to create a playlist of your projects. Then use them as backing tracks, whether you're playing live or rehearsing a set.

It starts with a groove
With 150 preloaded drum loops in a variety of patterns and genres, the R12 provides a versatile rhythm section for any project.

Import audio files
Add additional audio samples by importing files into your R12 via Micro SD card or USB thumb drive.

Take it everywhere
The R12 provides up to 5 hours on four AA batteries allowing you to bring your production anywhere. Additionally, you can power the R12 with the optional AD-17 adaptor, or a USB battery.

From headphones to monitors
The R12 includes an 1/8" stereo headphone jack as well as dedicated 1/4" monitor outputs.

Expanded control
Musicians can also plug in their iOS devices to use the optional R12 Control App.

Interface + Control surface
Use the R12 as a stereo audio interface with your favourite DAW or streaming platform, via USB-C. As a control surface, the transport controls and faders make it easy to adjust and control your software during production.

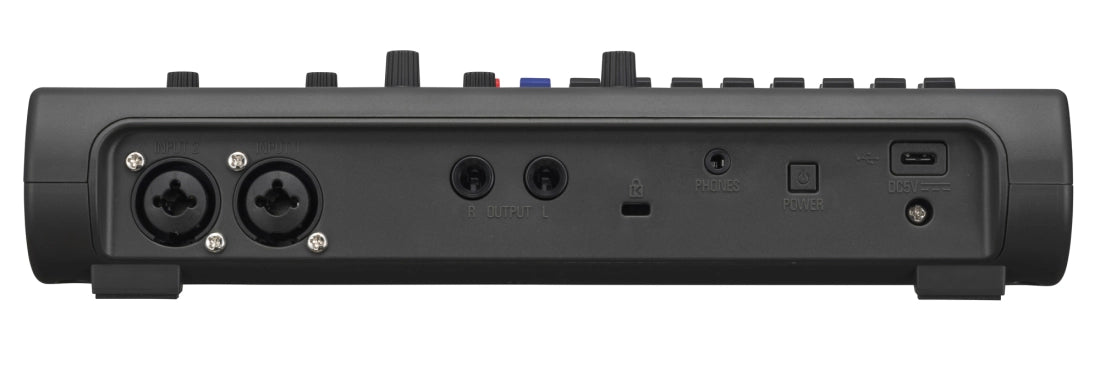

Connections for everything
Connect microphones, instruments or line level devices like keyboards, mixing boards and more.

Hi-Z
Input 1 on the R12 has a Hi-Z switch, allowing you to plug your guitar directly into the recorder.

Phantom Power
Both inputs on the R12 offer 48V Phantom Power for condenser microphones.

Stay in time. Every time.
Activate the fully customizable click track with the press of a button. Use the click balance section to blend the metronome with your playback audio and route to your headphones and/or the main outputs.

Add some synth
The R12 has 18 FM synth instruments built in that can be played by plugging in a MIDI keyboard via USB-C or programmed using the touchscreen.

Features
• Multi-track digital recorder with up to 8 tracks of recording
• 2.4" Full Colour LCD touchscreen display with easy touch and swipe editing
• User friendly graphic interface with on-board editing capabilities
• Battery Powered up to 5 hours (4 AA's)
• 2 XLR / TRS Combo inputs - with phantom power and HI-Z on input 1
• Send effects channel with 4 options: Reverb, Delay, Chorus, or Guitar Lab preset
• Built-in compressor for inputs 1 and 2
• Pan and 3-band EQ for each track
• Sequence play - for using backing tracks in a live setting
• Drum loops (150 preloaded)
• Records directly to SDXC cards
• Built-in USB-C audio interface (2-in / 2-out or 2-in/4-out) with control surface function

Specifications
Inputs/Outputs
Inputs: Mic/Line (mono) x2
Outputs: Master Out and Phones

Inputs
Connectors: 2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT / TRS: TIP HOT)
Input gain: +6 ~ +50 dB
Input impedance: XLR: 3.9 kΩ TRS: 3.9 kΩ/1 MΩ (when Hi-Z ON, INPUT 1 only)
Phantom power: +48 V (switchable separately for INPUTS 1 and 2)
Equivalent input noise: -121 dBu or less (IHF-A) at +50 dB/150 Ω input
Frequency response: -1.0/+0.5 dB: 20 Hz - 20 kHz

Outputs
Master Out Connectors: 2 TRS phone jacks (balanced)
Master Out Maximum output level: +14 dBu
Master Out Output impedance: 200 Ω

Phones Connectors: 1 stereo 3.5mm mini jack
Phones Maximum output level: 45 mW + 45 mW (into 32 Ω load)
Phones Output impedance: 10 Ω

Recorder
Maximum simultaneous recording tracks: 2
Maximum simultaneous playback tracks: 8
Recording format: 44.1kHz, 16/24-bit, mono/stereo WAV
Recording media: Cards compatible with microSDHC specifications 4 GB - 32 GB / Cards compatible with microSDXC specifications 64 GB - 1 TB

EQ Track Settings
High: 10 kHz, +12 dB, shelving
Middle: 2.5 kHz, +12 dB, peaking
Low: 100 Hz, +12 dB, shelving

Effects
Input Dynamics: Comp/Limiter/Gate
Patch memory effects: 3 types can be used simultaneously, 50 patch memories, Guitar Lab supported, Can be assigned and used as an insert (input) or send effect
Dedicated send effects: 10 types of spatial effects

Tuner
Chromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD

Metronome
Time signatures: 3/4, 4/4, 6/8
Tempo range: 40.0 - 250.0 BPM

Rhythm Loops
Sound source format: PCM
Number of loops: 150

Synth
Sound source format: FM
Polyphony: 8
Number of sound types: 18 (and a PCM drum kit)

Display
2.4" (320240) full-colour touchscreen LCD

Power
Batteries: 4 AA (alkaline, lithium, or rechargeable NiMH)
AC adaptor: ZOOM AD-17 (5V/1.0A)

Power Consumption
5 W maximum

Dimensions
256 158 61 mm

Includes
- R12 MultiTrak
- AD-17 AC Adaptor
- USB Cable
- Quick Tour Guide
